YC16-25 Bar Straightener Machine [16mm-25mm]

Machine ModelYC16-25
Round bar16~25mm
Rebar16~25mm
Speed≥20m/min
Power15KW
GW/NW850Kg/780Kg
Dimension150*85*130cm

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Input Holes

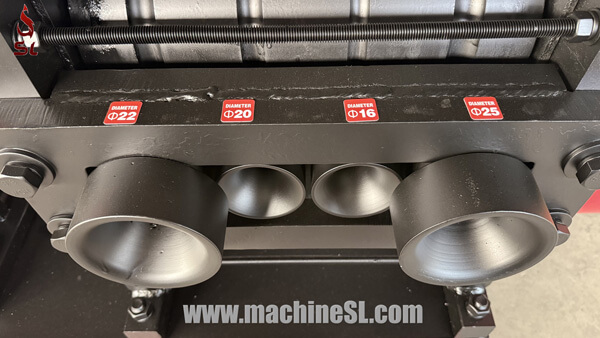

1 import hole with size indicator
  • Import holes with diameter indicator

  • Rollers With Different Size Channel

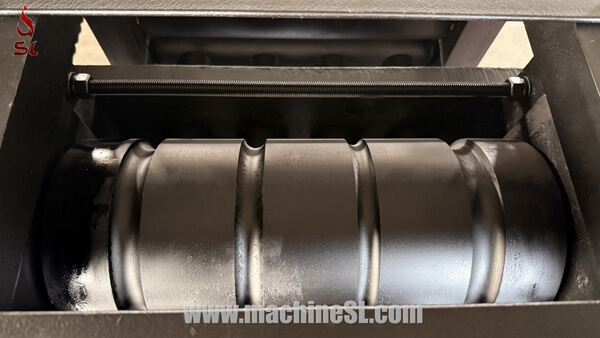

3 roller with different size channel
  • rollers with different size channel

  • Wheels for Adjust Pressure

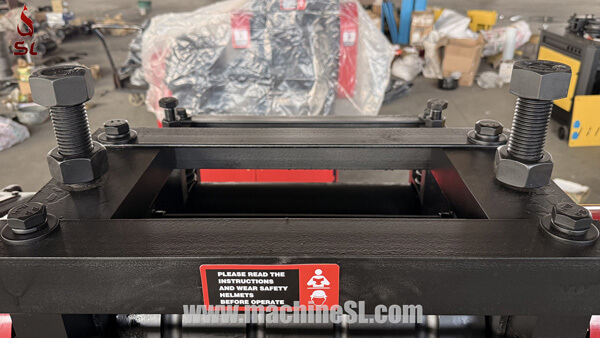

2 press roller adjustment
  • Wheels for adjust pressure on rollers

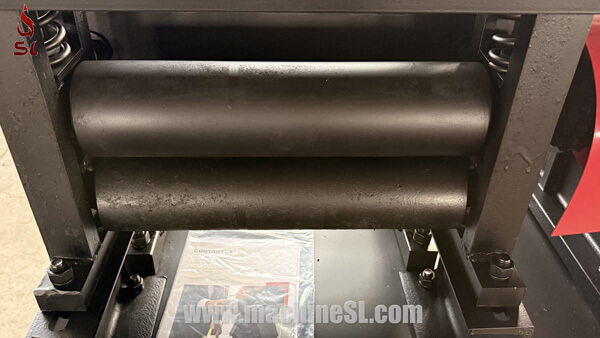

  • Traction Rollers

4 traction roller for pulling out the rod
  • Traction rollers for pulling rebar out

  • Shield

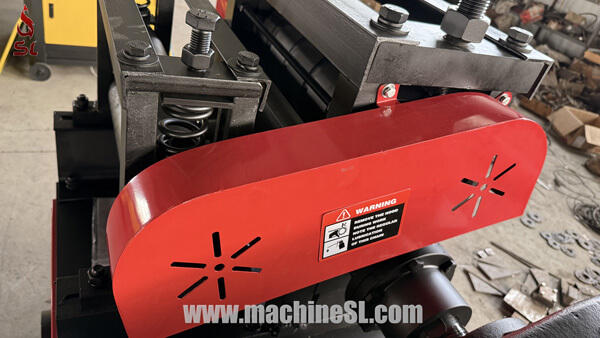

7 shield
  • Shield for safety

  • Reduction Box

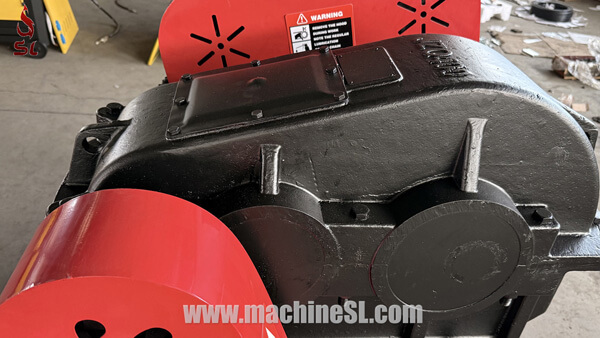

5 reduction box
  • Reduction box powrful much, it needs 5-8kgs machine oil

  • Transmission Shaft

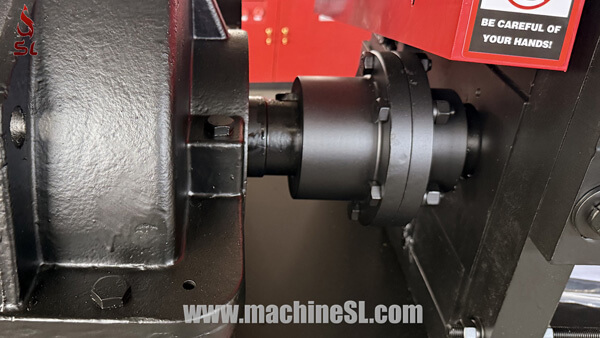

6 shaft
  • Transmission shaft

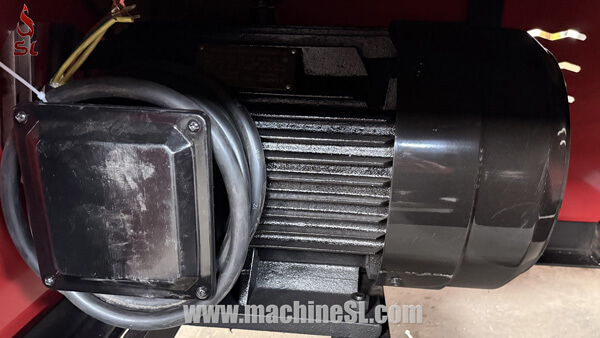

  • Electric Motor

8 electric motor
  • 15KW electric motor

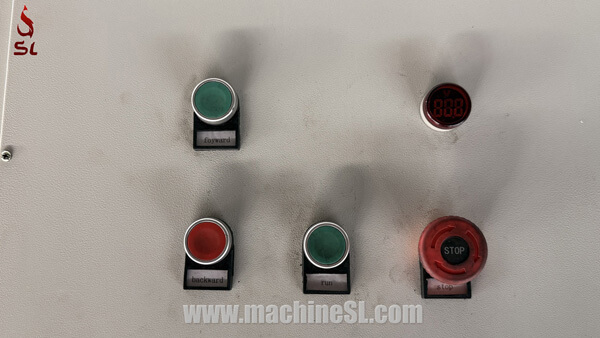

  • Buttons

9 function buttons
  • Function buttons

  • Electrical Apparatus Element

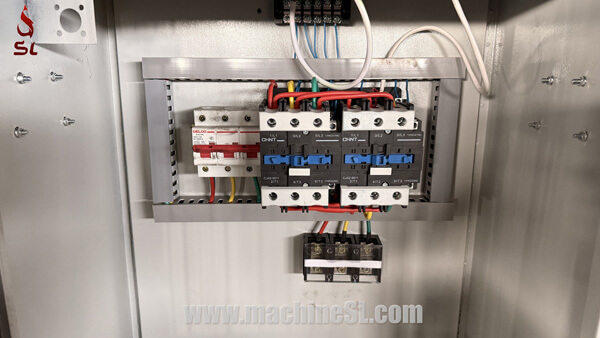

10 electric appliance
  • Electrical apparatus element inside

  • Controller

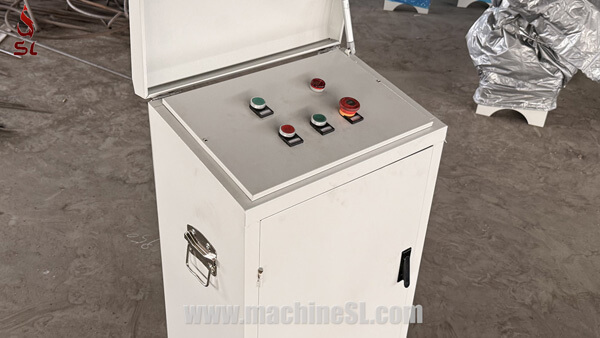

11 controller
  • Door handle

  • The Package

plywood case
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
