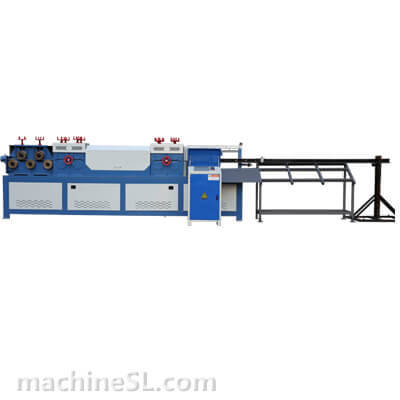

GTS16-22 Steel Bar Straightening Cutting Machine [16mm – 22mm, Speed Adjustable]

Machine Model GTS16-22
Round Bar 16~22mm
Rebar 16~20mm
Power 37Kw
Length Cutting ≥50mm
Straighteness ±1mm/m
Cutting Error ±1mm
Speed Adjustable 10-25m/min
GW/NW 5200Kg/4500Kg
Dimension 5050*1250*1750mm

Product Descriptions

  • Machine Video

  • Our Company Overview

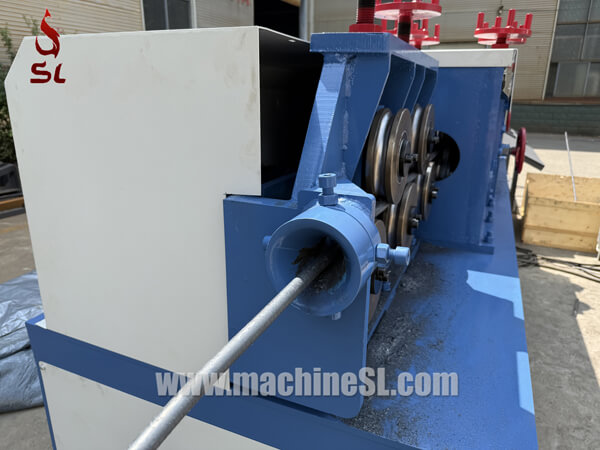

  • Steel Bar Import Hole

1 steel bar import hole
  • Steel bar import hole

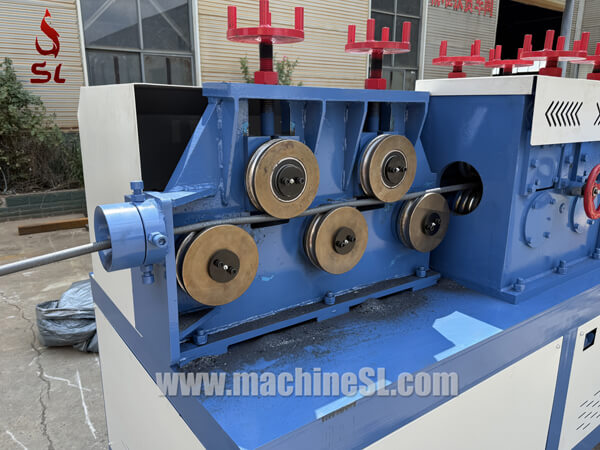

  • Roller at Import

2 roller at import
  • Roller at import

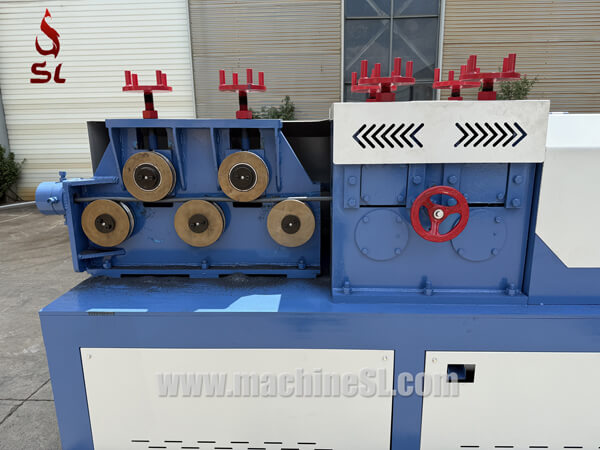

  • Overview of Import

3 overview of import
  • Overview of import

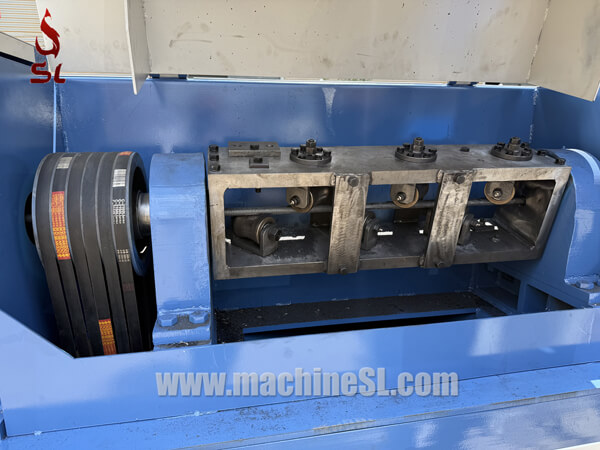

  • Rotate Straightening Die

4 rotate straightening die
  • Rotate straightening die

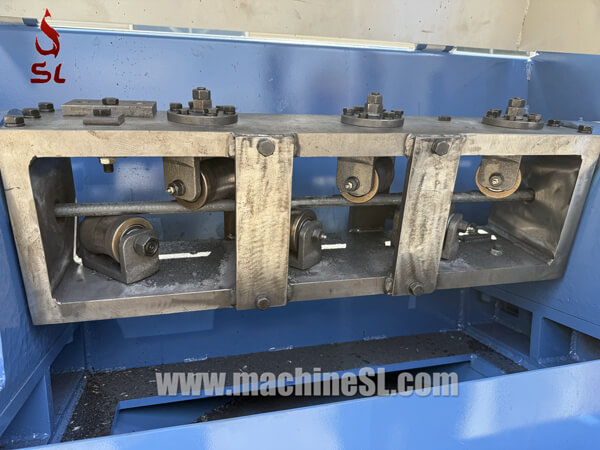

  • Straightening Rollers

5 straightening rollers
  • Straightening rollers

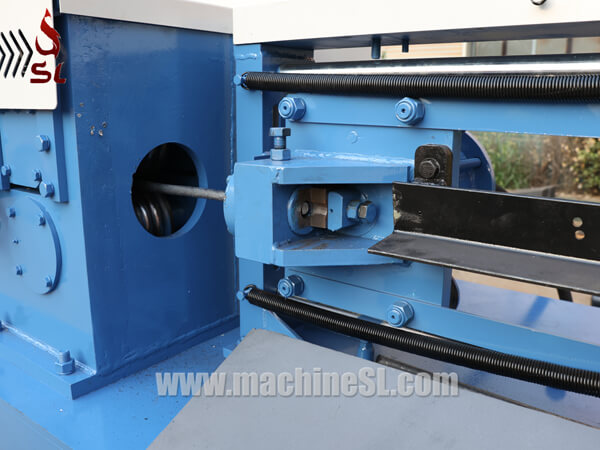

  • Hydraulic Cutting Device

6 hydraulic cutting device
  • Hydraulic cutting device

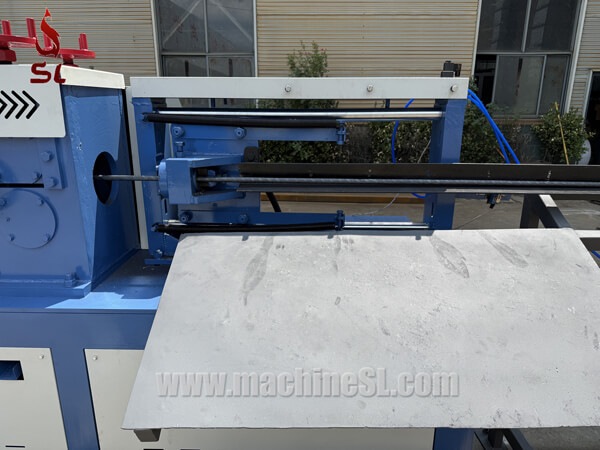

  • Discharge Platform

7 discharge platform
  • Discharge platform

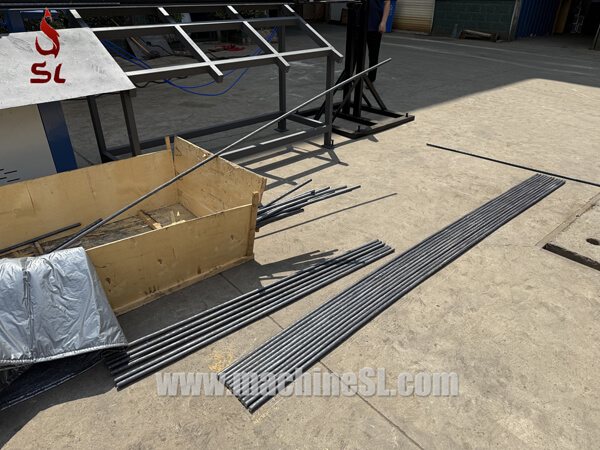

  • Straightened Steel Bar

8 straightened steel bar
  • Straightened steel bar

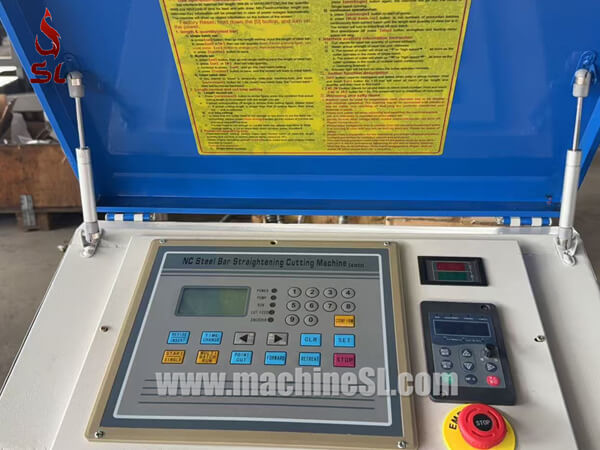

  • CNC Controller

9 CNC controller
  • CNC controller

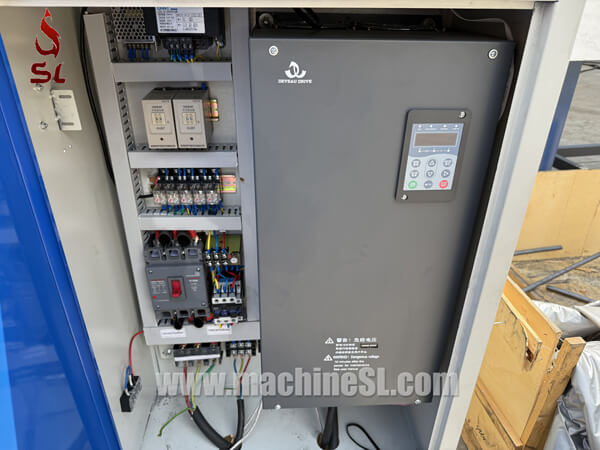

  • Interior of Controller

10 interior of controller
  • Hydraulic pump motor

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,

  • Orders Delivery
