CPSH300 Self Propelled Heavy Duty Concrete Planer [Hydraulic, Turning Easily by Handle]

Machine Model CPSH300
Planing thickness 0~8mm
Work width 300mm
Work efficiency 40m²/h
Power Electric 9Kw, hydraulic
Cutter type 126pcs
GW/NW 330Kg/280Kg
Dimension 110*50*110CM

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Turning by Handle

1 turning by handle
  • ① turning left
  • ② turning right

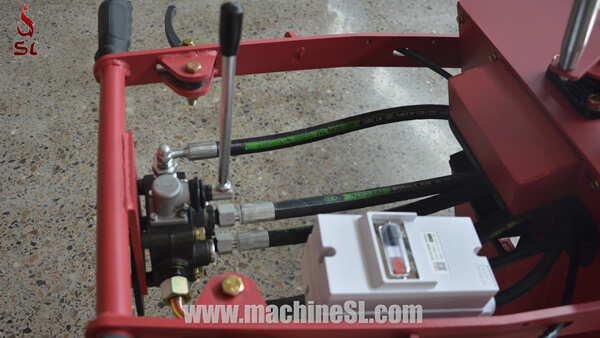

  • Travel Switch

2 Travel switch
  • Travel switch

  • Switch

3 switch
  • Power switch

  • Hydraulic Motor

5 hydraulic motor
  • Hydraulic motor supply powerful driving force

  • Milling Thickness Adjustment Wheel

5 milling thickness adjustment wheel
  • Adjust the wheel to milling different thickness

  • Hydraulic Pump and Lifting Hook

6 hydraulic pump and lifting hook
  • Hydraulic pump and lifting hook

  • Hydraulic Oil Hole

7 hydraulic oil hole
  • Injection hydraulic oil here

  • Milling Cutters

8 milling cutters
  • 126pcs 8-points milling cutters

  • Electric Motor

9 electric motor
  • 9 kw three phase electric motor

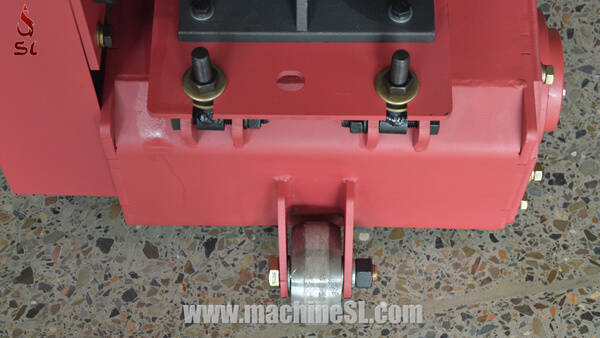

  • Front Wheel

10 Front wheel
  • Front wheel

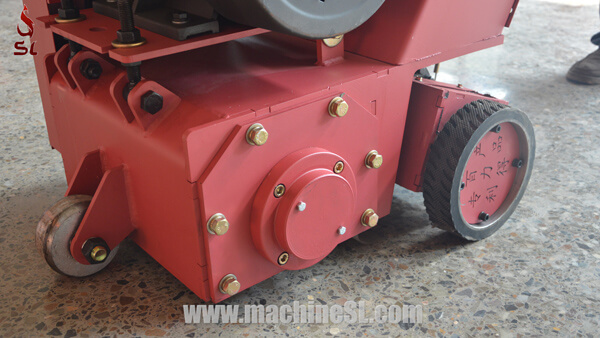

  • View at Side

11 view at side
  • View at Side

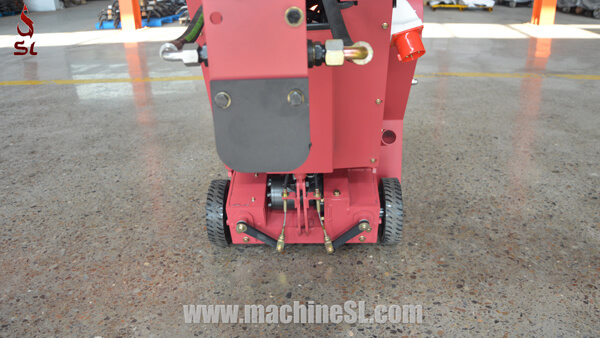

  • View of The Back

12 view of the back
  • View of the back

  • Plugin

13 plugin
  • Safety plugin

  • Vacuum Cleaner Connector

14 Vacuum cleaner connector
  • Vacuum cleaner connector

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
