GTS4-14/90 High Speed Wire Straightening And Cutting Machine [0-90m/min]

Machine Model GTS4-14/90
Round bar 4~14mm
Rebar 5~12mm
Speed 0~90m/min
Power 20.5KW
GW/NW 1700Kg/1200Kg
Dimension 297*85*116cm

Product Descriptions

  • Machine Video

  • Our Company Overview

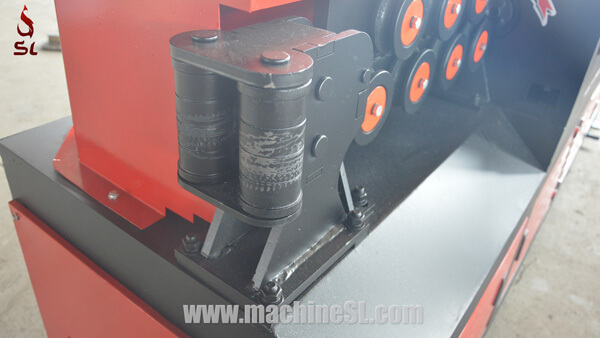

  • Guide Wheel

1 guide wheel
  • Guide wheel at import side

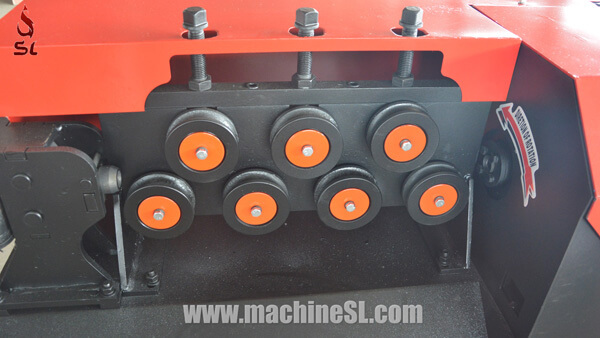

  • Track Wheel

2 track wheel
  • Track wheel at import side

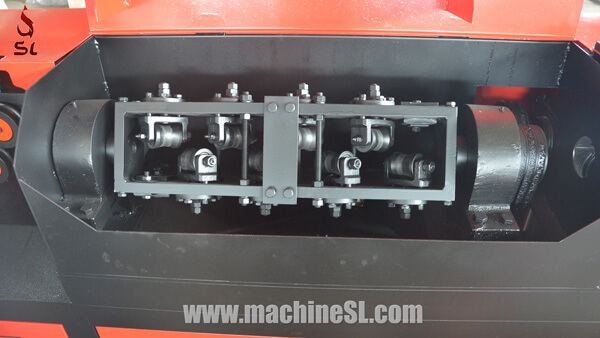

  • Straightening Die & Rollers

3 straightening die & rollers
  • Straightening die & rollers

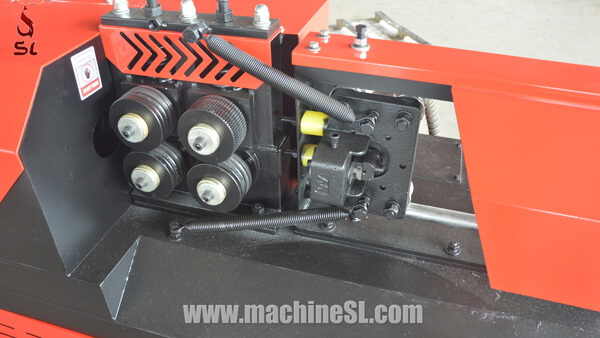

  • Traction Wheel & Counter Wheel & Hydraulic Cutter

4 traction wheel & counter wheel & hydraulic cutter
  • Traction wheel & counter wheel & hydraulic cutter at export side

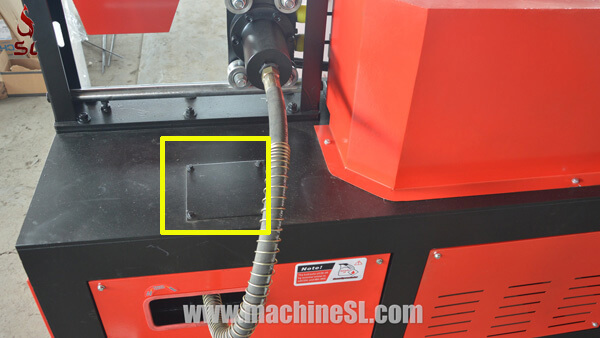

  • Hydraulic Oil Hole

5 hydraulic oil whole
  • The yellow square line shows hydraulic oil hole, inject 15-20L hydraulic oil before run the machine

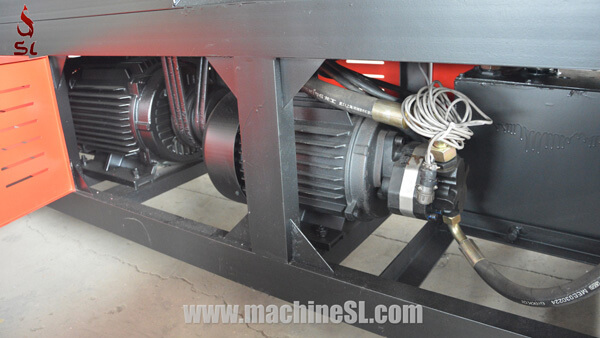

  • Powerful Electric Motor

6 powerful electric motor
  • Powerful electric motor 2pcs, 15kw +5.5kw

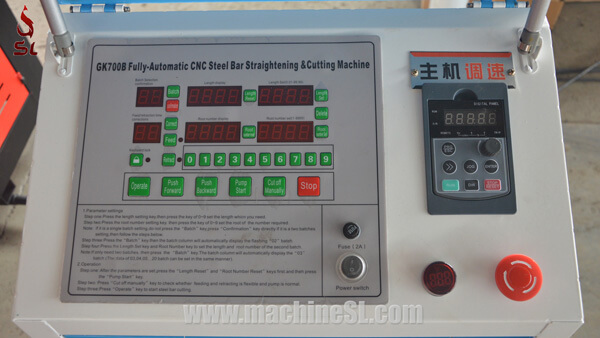

  • CNC & Digital Controller

7 cnc & digital controller
  • CNC & digital controller

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
