PZ-5A Fully Pneumatic Shotcrete Pump Concrete

ModelPZ-5A
Capacity5m³/h
Max Delivery Distancehorizontal 200m / vertical 30m
Max Aggregate Size20mm
Inside Diameter of PipeØ51mm
Air motorGMH6A
Working Pressure0.2-0.4Mpa
Air Consumption7-15m³/min
Air motor pressure0.5MPa
Weight720Kgs

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Oil Filling Port

1 oil filling port
  • Oil filling port, before running the machine, inject 18Kg machine oil

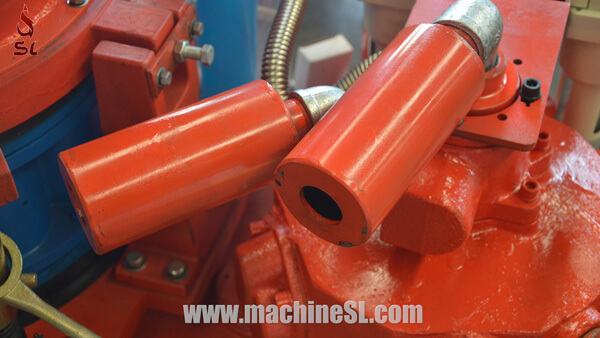

  • Silencers

2 silencers
  • Silencers, reduce noise pollution

  • Air Compressor Interface Port

3 Air compressor interface port
  • Air compressor interface port, connect these port to air compressor

  • Vibrator

4 vibrator
  • Air vibration motor

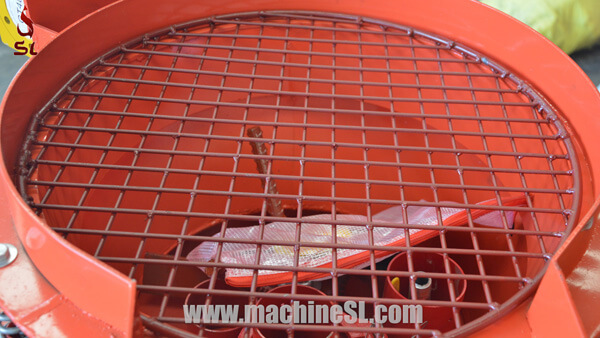

  • Sieve Mesh

5 sieve mesh
  • Sieve mesh

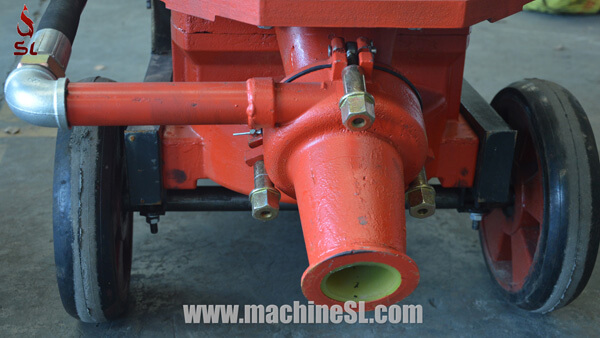

  • Outlet Port

6 outlet port
  • Outlet port

  • Value

8 Barometer and valve
  • Barometer and valve

  • Compactor

9 compactor
  • Compactor

  • Wheels

10 wheels
  • Wheels

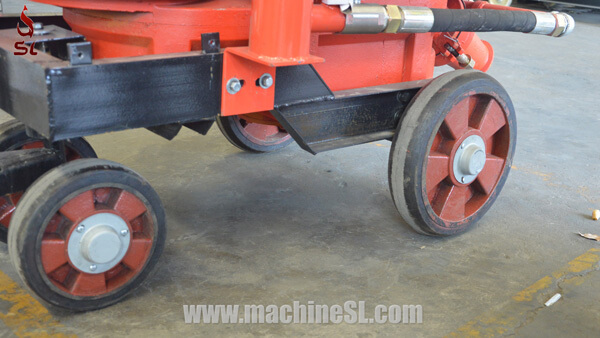

  • Wheels

11 wheels
  • Wheels

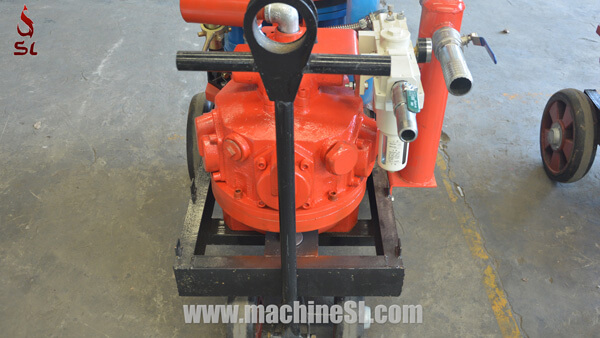

  • Drag Handle

12 Drag handle
  • Drag handle

  • Oil Filling Port

13 oil filling port
  • Oil filling port, 4-5L gear oil

  • Compactor

14 compactor
  • Compactor

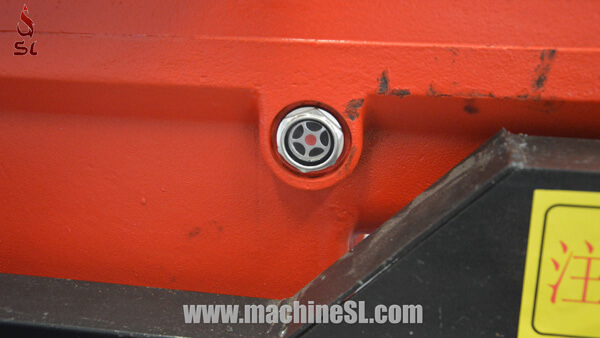

  • Oil Level Window

15 oil level window
  • Oil level window

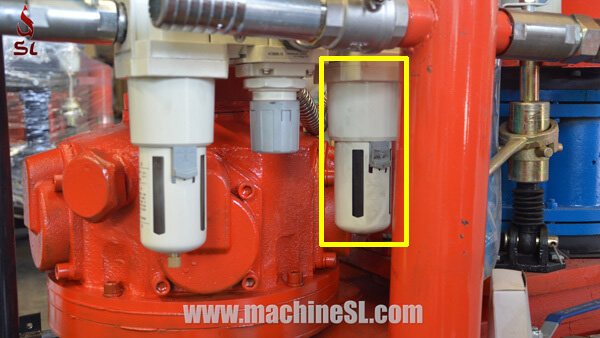

  • Grease Cup

16 grease cup
  • Grease cup, inject machine oil ⅔ volume before running the machine

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
