GT6-16 Steel Bar Straightening And Cutting Machine [6mm-16mm]

Machine ModelGT6-16
Round bar6~16mm
Rebar6~16mm
Speed35m/min
Power30KW
GW/NW2000Kg/1800Kg
Dimension328*100*140cm

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Import Channel With Roller

1 import channel
  • Import channel with roller

  • Traction Wheels

2 traction wheels
  • 5 traction wheels at import side

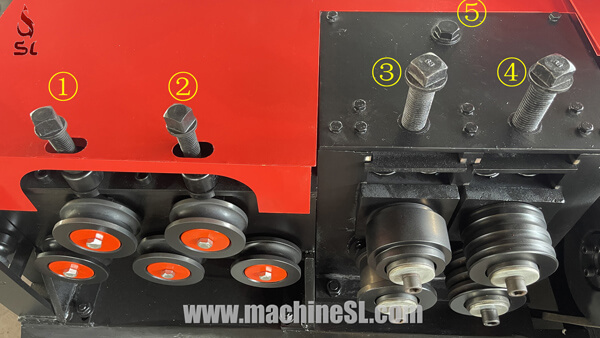

  • Bolts and Oil Fill Port

3 Bolts and oil hole
  • ① ② ③ ④ are bolts for pressing traction rollers
  • ⑤ is the machine oil filling port, before machine running, it must injection machine oil for lubricating gears

  • Straightening Die

4 Straightening die
  • It’s strong straightening die with 8 rollers

  • Traction Wheels and Length Counter Wheel

5 traction wheels and length counter wheel
  • ① wheel is the length counter wheel
  • The others are traction wheels

  • Blots and Oil Filling Port

6 blots and oil filling port
  • ① ② are bolts for pressing traction rollers
  • ③ is the machine oil filling port, it must injection machine oil before running

  • Hydraulic Cutter

7 hydraulic cutter
  • It’s the cutter powered with hydraulic pump

  • Oil Cylinder

8 oil cylinder
  • Hydraulic oil cylinder driving the cutter

  • Hydraulic Oil Input Hole

9 hydraulic oil filling port
  • Before running the machine, it has to inject hydraulic oil as requirement

  • Motor

11 electric motor
  • Hydraulic pump motor

  • Motor

13 electric motor
  • Motor for straightening

  • Motor

12 electric motor
  • Motor for traction rebar

  • Lifting Ring

14 Lifting ring
  • Lifting ring for lifting the machine conveniently

  • Waste Dumping Port

15 Waste dumping port
  • Waste dumping port

  • Straightening Die Cover

16 straightening die cover handle
  • Straightening die cover for safety

  • Toolkits

10 toolkits
  • Toolkits

  • CNC Controller [Speed Adjustable Model]

17 operation panel
  • Operate the machine by CNC controller, digital panel

  • Interior Of Controller

18 Inside the controller
  • Interior Of Controller, speed adjustable model

  • CNC Controller [Constant Speed]

19 operation panel
  • Operate the machine by CNC controller, digital panel

  • Interior Of Controller

20 Inside the controller
  • Interior Of Controller, constant speed

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
