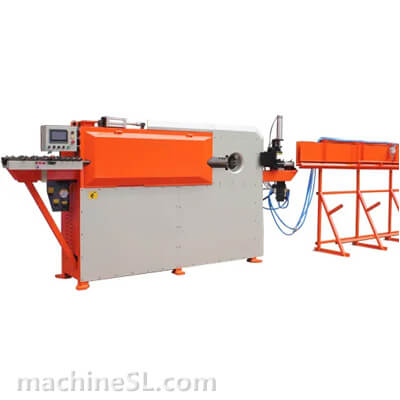

GTW4-12B PLC Automatic Stirrup Machine

Model GTW4-12B
Single Wire 4-12mm
Double Wires 4-10mm
Max Bending Speed 1200°/s
Bending Directions 2D (2 Ways)
Production Speed 750-1200pcs/h
Max Towing Speed 70m/min
Length Cutting Error ±1mm
Angle Bending Error ±1°
Power Tracking Servo: 11KW
Bending Servo: 3KW
Cutting: 3KW
Air Compressor: 5.5KW
Control System Touch Screen, PLC
Average Power Comsuption 3KW/h
Dimension 3650 * 1250 * 1950mm
Weight 1700kg

Product Descriptions

  • Machine Video

  • Our Company Overview

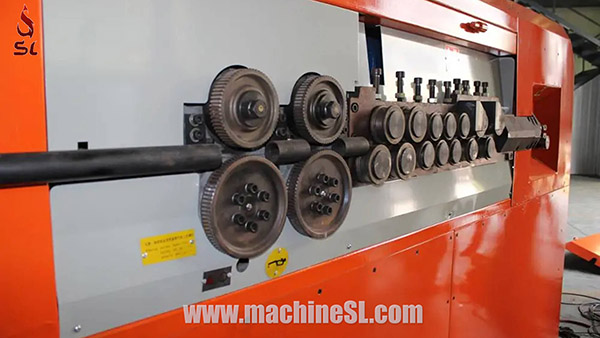

  • Straightening Rollers

1 straightening rollers
  • Traction rollers and straightening rollers

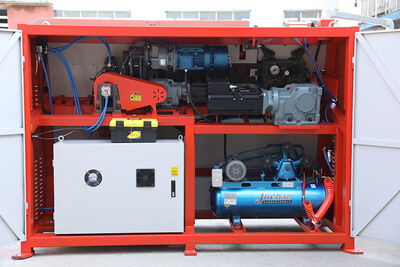

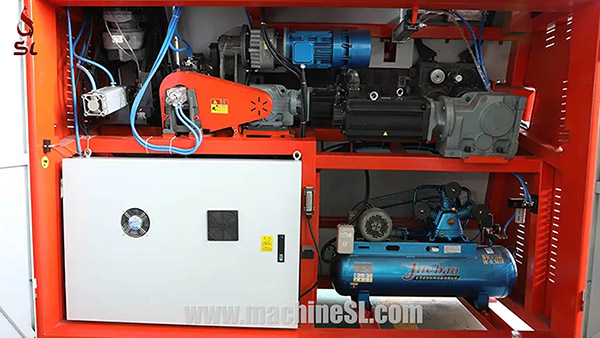

  • Interior

2 interior
  • Overview of the interior

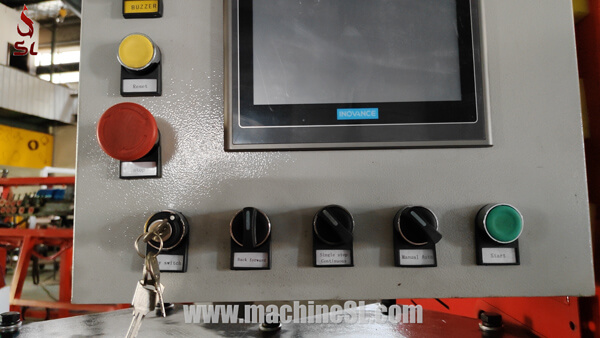

  • Operation Panel

3 operation panel
  • Operation panel with English indicator

  • Traction Rollers

4 traction rollers
  • Traction rollers

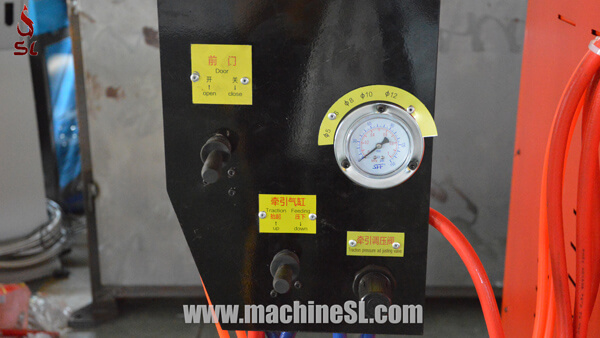

  • Pneumatic Regulation Unit

5 pneumatic regulation unit
  • Pneumatic regulation unit with English indicator

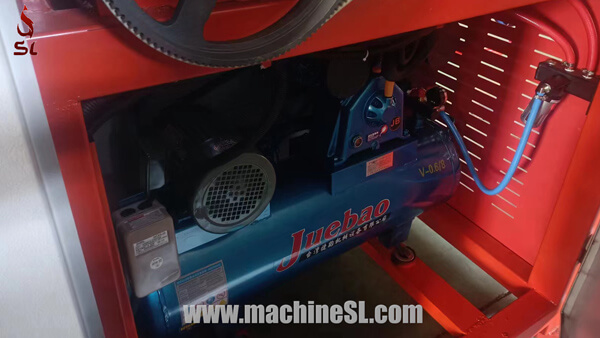

  • Air Compressor

6 air compressor
  • Air compressor

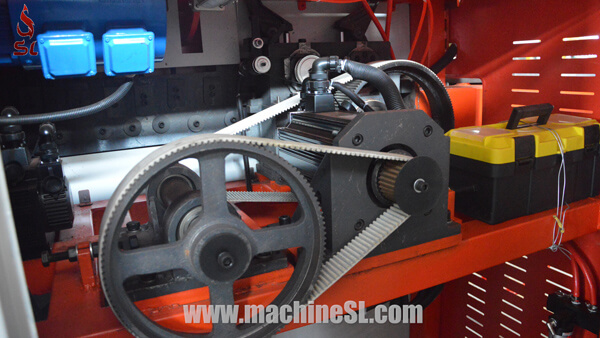

  • Traction and Straightening Device

7 traction and straightening device
  • Traction and straightening device

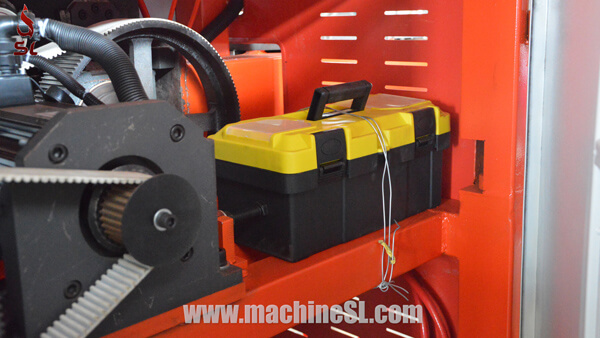

  • Toolkit

8 toolkit
  • Toolkit

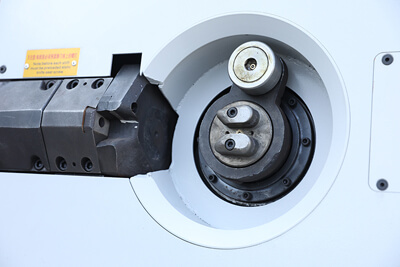

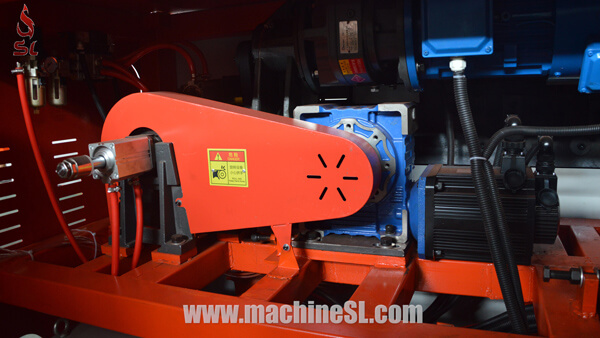

  • Bending Device

9 bending device
  • Bending device

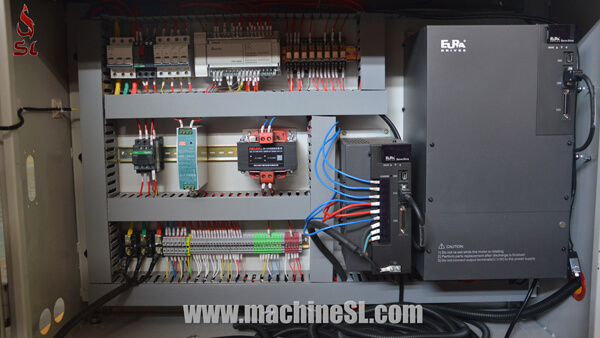

  • Electrical Equipment

10 electrical equipment
  • Electrical equipment

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,

  • Orders Delivery
