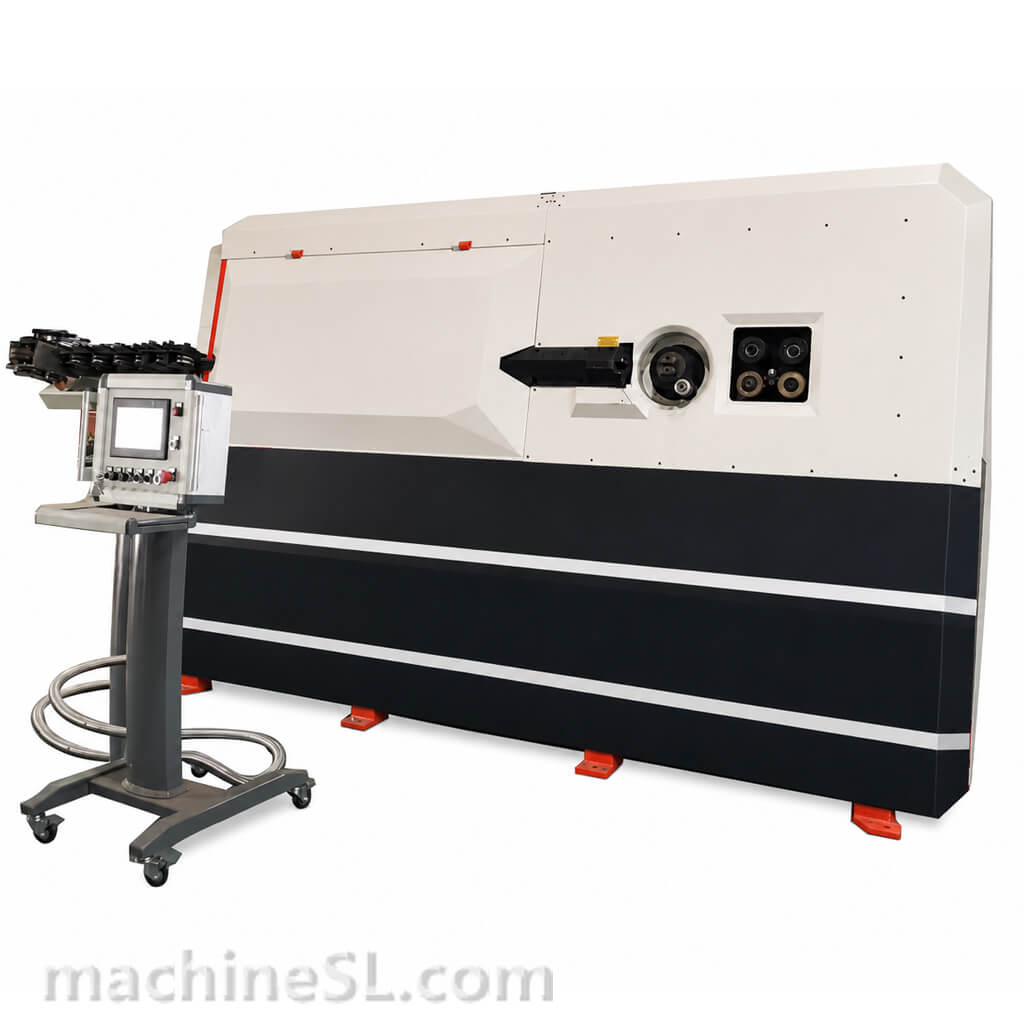

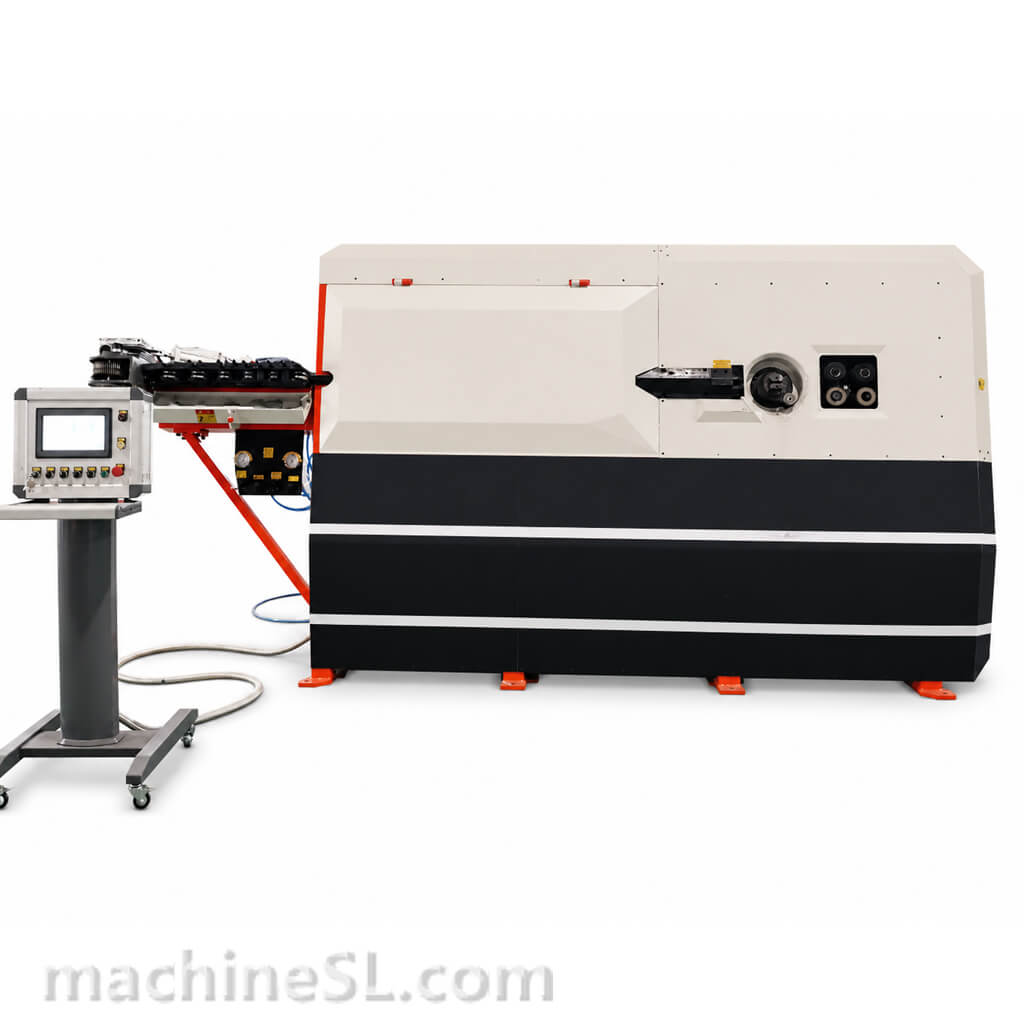

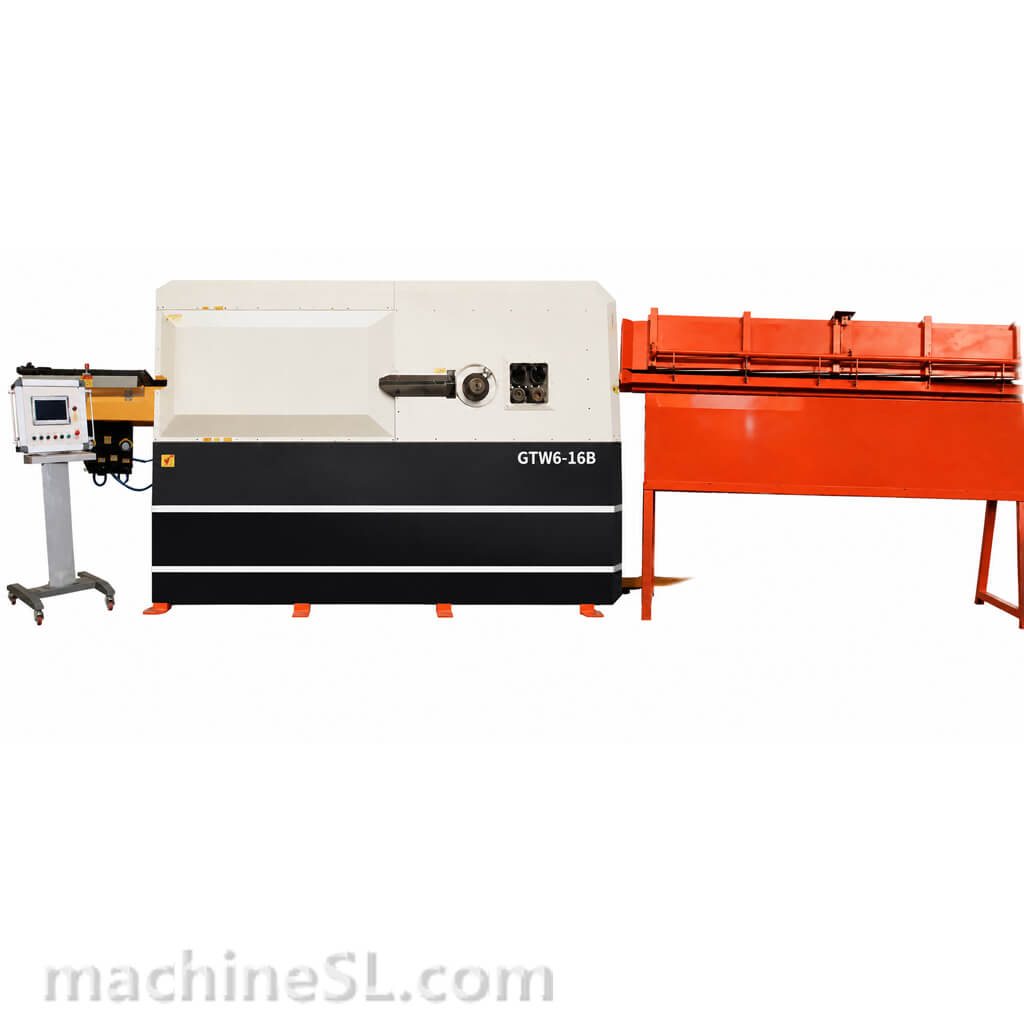

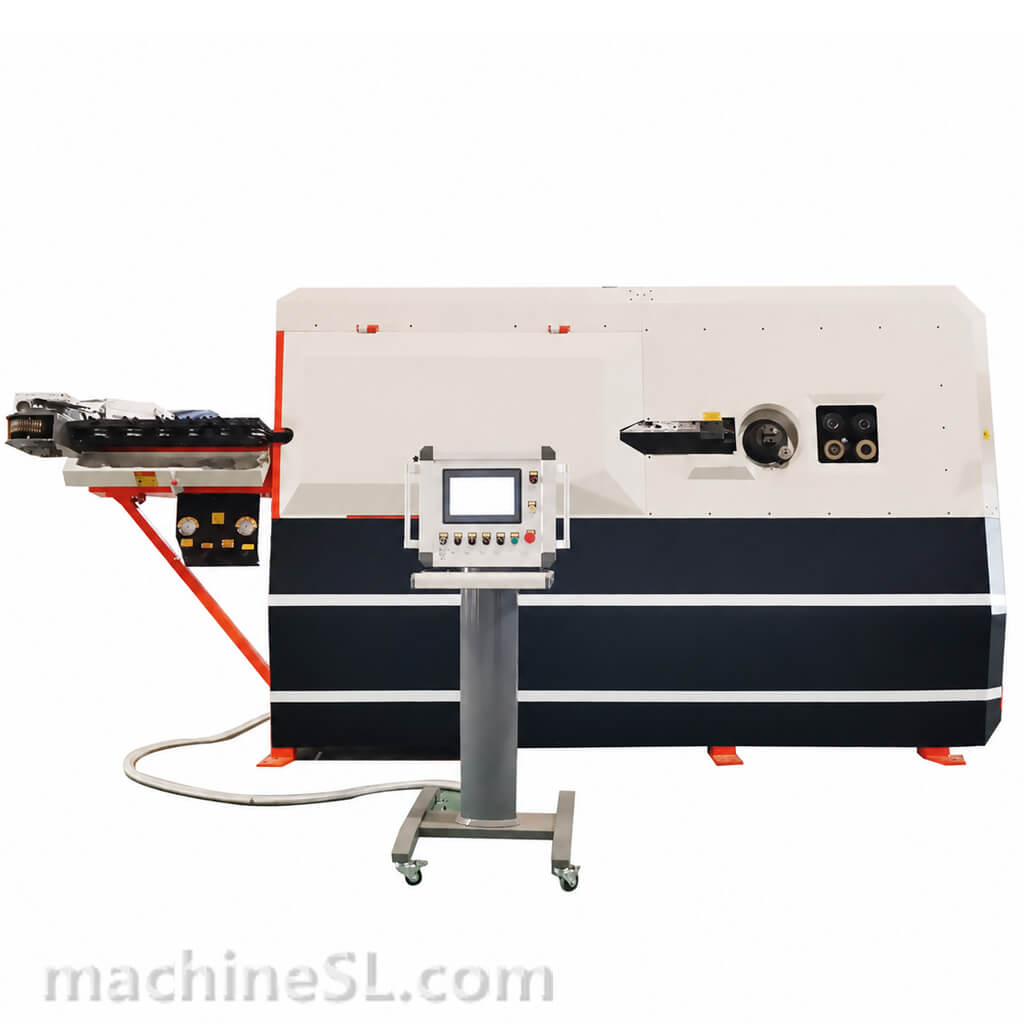

GTW6-16B CNC Stirrup Bending Machine [6mm-16mm]
| Model | GTW6-16B |
| Single Wire | 6-16mm |
| Double Wires | 6-14mm |
| Max Bending Speed | 1200°/s |
| Bending Directions | 2D (2 Ways) |
| Production Speed | 750-1500pcs/h |
| Max Towing Speed | 70m/min |
| Length Cutting Error | ±1mm |
| Angle Bending Error | ±1° |
| Power | Tracking Servo: 40KW Bending Servo: 20KW Backward Servo: 2.5KW Cutting: 7.5KW Air Compressor: 5.5KW Feeding: 3KW |
| Control System | Touch Screen, PLC |
| Average Power Comsuption | 4KW/h |
| Dimension | 5300*1350*2200mm |
| Weight | 4800kg |
Product Descriptions
- Import hole and driving motor
- Driving motor for rebar
- Traction rollers
- Controller and instrument
- Straightening rollers
- Bending unit center
- Interior structure
- Interior structure
- Interior structure
- Interior structure
- Interior structure
- Electric appliance cabinet
- Electric appliance
- Electric appliance
- Electric appliance
- PLC Controller
- Angle iron frame with carton covers, avoiding solid wood problems
- Strong for shipping,
