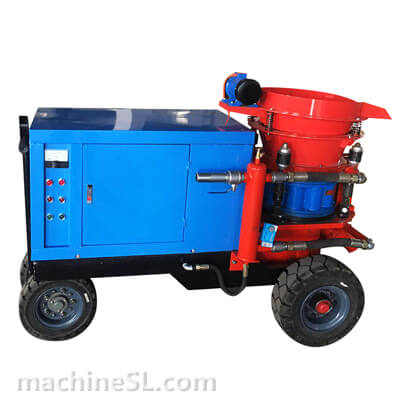

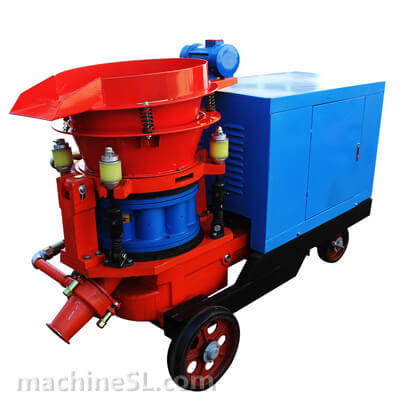

HSP-5 Gunite Spray Equipment (Wet & Dry)

Model HSP-5
Capacity 3-5m³/h
Max Delivery Distance horizontal 200m / vertical 30m
Max Aggregate Size 20mm
Inside Diameter of Pipe Ø51mm
Rotor Diameter 438mm
Working Pressure 0.4-0.6Mpa
Air Consumption 7-15m³/min
Power 5.5KW
Weight 700Kgs

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Air Compressor Connection Unit

air compressor connection unit
  • Air compressor connect to this unit

  • Air Vibrator

air vibrator
  • Air vibrator, used for vibrating the sifter when adding material

  • Discharge Port

discharge port
  • The material will be discharged via this port

  • Feed Port And Sifter

feed port and sifter and
  • Add material by here

  • Accelerator Pump

accelerator pump
  • Accelerator pump

  • Accelerator Tank and Pump

accelerator tank and pump
  • ① Accelerator tank
  • ② Accelerator pump
  • ③ Electric motor

  • Concrete Accelerator Control Unit

concrete accelerator control unit
  • Concrete accelerator control unit,control the flow by control value

  • Power Connecting Box

power Connecting box
  • Connect power lines to here

  • Refueling Hole and Window

Refueling hole and window
  • ① Add 10 kgs machine oil before using the machine
  • ② Check oil level via the window

  • Rubber Tire

rubber tire
  • Move to anywhere by rubber tires

  • Towing Holder

towing holder
  • Portable handle for moving to anywhere

  • Voltmeter and Buttons

voltmeter and buttons
  • ① Voltmeter
  • ② Indicator light
  • ③ Button
  • ④ Door lock

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
