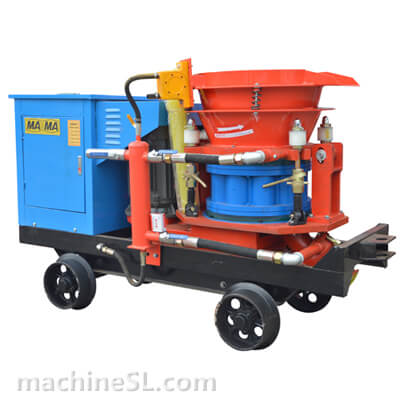

concrete shotcrete machine 2
concrete shotcrete machine

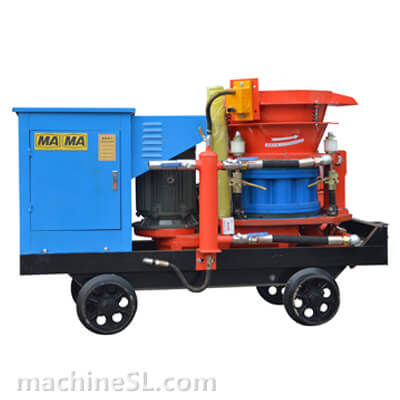

concrete shotcrete machine 1
concrete shotcrete machine 2
concrete shotcrete machine
concrete shotcrete machine 1
concrete shotcrete machine 2
concrete shotcrete machine
concrete shotcrete machine 1
previous arrow
next arrow

HSP-7I  Anti-Explosion Concrete Shotcrete Machine [Wet & Dry]

Model HSP-7I
Capacity 5-7m³/h
Max Delivery Distance horizontal 200m / vertical 30m
Max Aggregate Size 20mm
Inside Diameter of Pipe Ø51mm
Rotor Diameter 480mm
Working Pressure 0.4-0.6Mpa
Air Consumption 15-20m³/min
Power 7.5KW
Weight 900Kgs

Product Descriptions

  • Machine Video

  • Our Company Overview

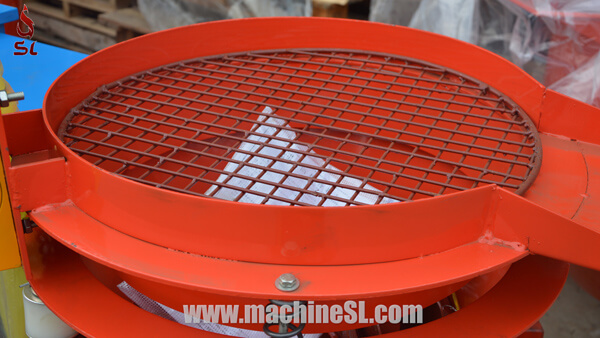

  • Feeding Port Vibrating Screen

1 Feeding port vibrating screen
  • Feeding port with vibrating screen

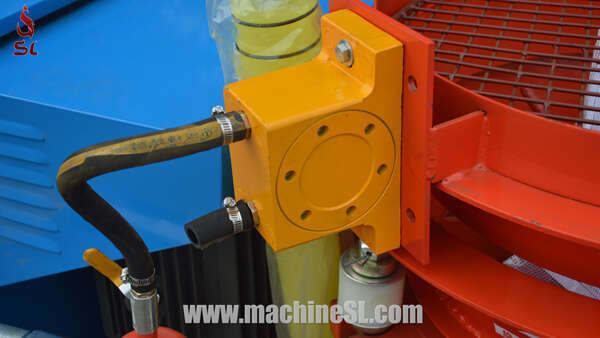

  • Vibration Motor

2 vibration motor
  • Vibration motor for vibrating screen

  • Rotor

3 rotor
  • Rotor, the blue color part

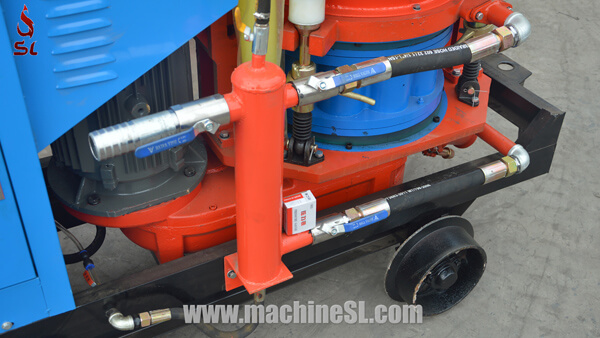

  • Air Compressor Connection Device

5 Air compressor connection device
  • Connect with air compressor

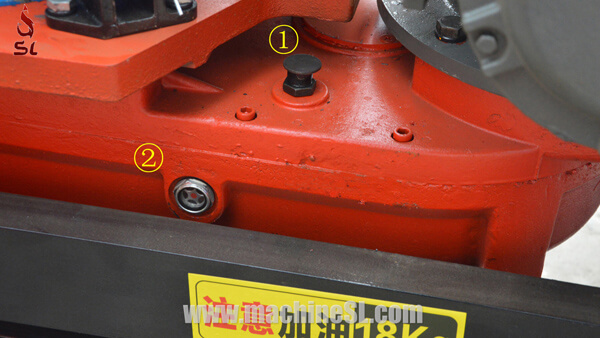

  • Oil Hole & Oil Window

4 oil hole and oil window
  • ① oil hole, injection 18kgs machine oil for lubricating gears
  • ② oil window

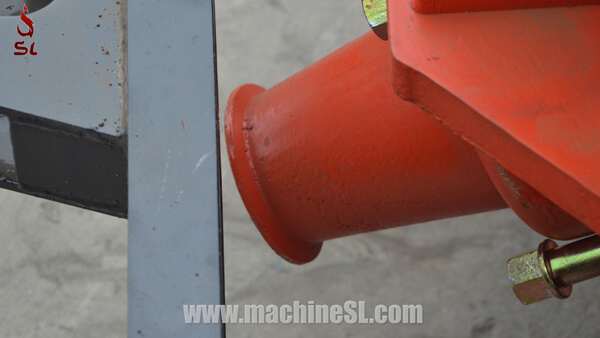

  • Discharge Hole

6 discharge hole
  • Discharge hole

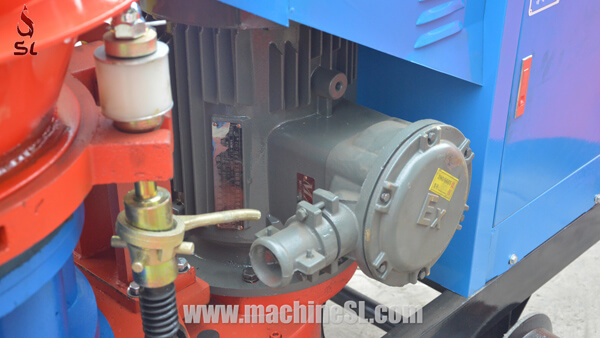

  • Explosion-Proof Electric Motor

7 explosion-proof electric motor
  • Explosion-proof electric motor,security permission

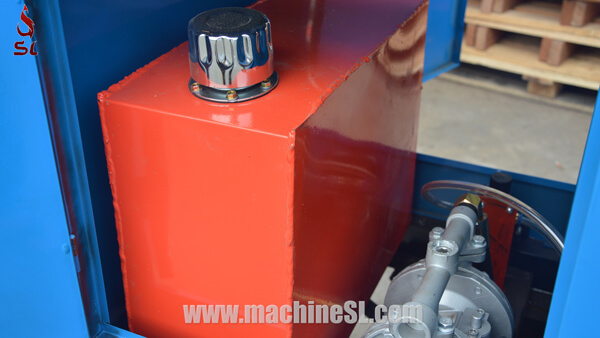

  • Accelerator Tank

8 accelerator tank
  • Accelerator tank, when you shotcrete wet concrete, it needs to use accelerator

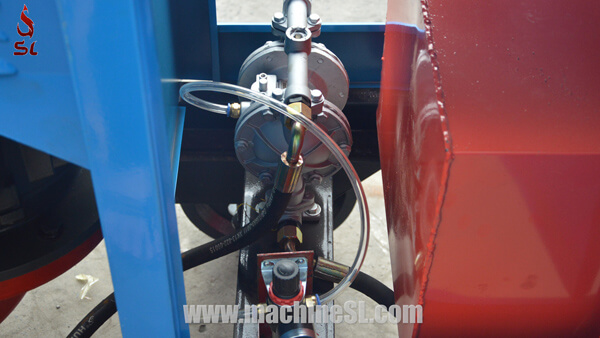

  • Accelerator Pump

9 accelerator pump
  • Pump for accelerator

  • Accelerator Discharge Port

10 Accelerator discharge port
  • Accelerator discharge port

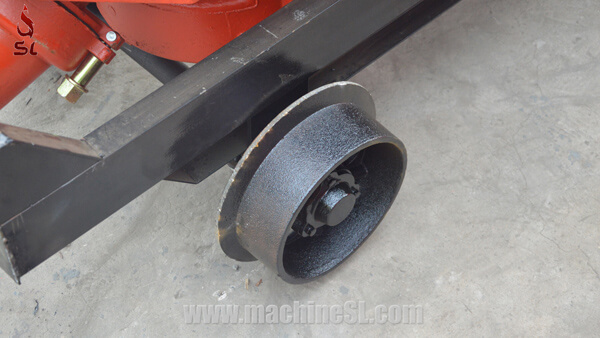

  • Track Wheel

11 Track wheel
  • Wheel for running on track

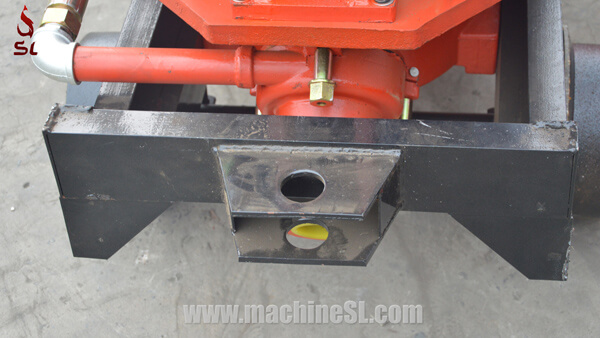

  • Drag Hook

12 drag hook
  • Drag hook, it’s easily to use as carriage

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
