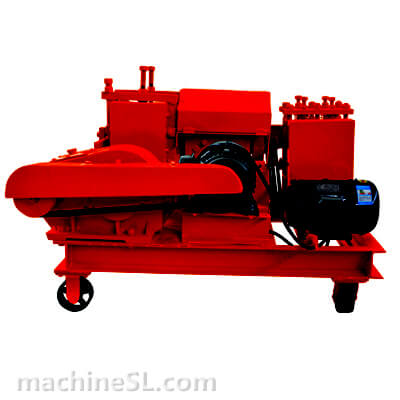

MYH6-14 Rebar Straightener Machine [6mm-14mm]

Machine Model MYH6-14
Round bar 6~14mm
Rebar 4~14mm
Speed ≥38m/min
Power 9.5KW
GW/NW 800Kg/750Kg
Dimension 150*125*90cm

Product Descriptions

  • Machine Video

  • Our Company Overview

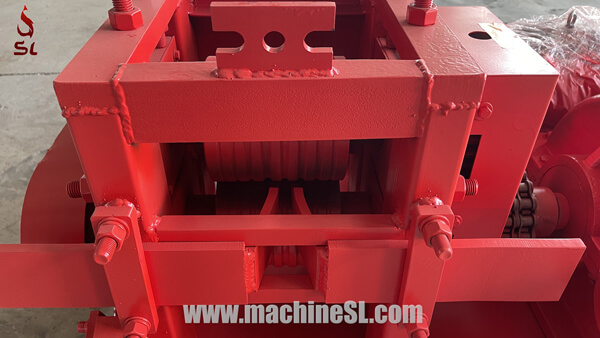

  • Input Side

input side
  • It shows the overview of input side, operater input rebar at this side

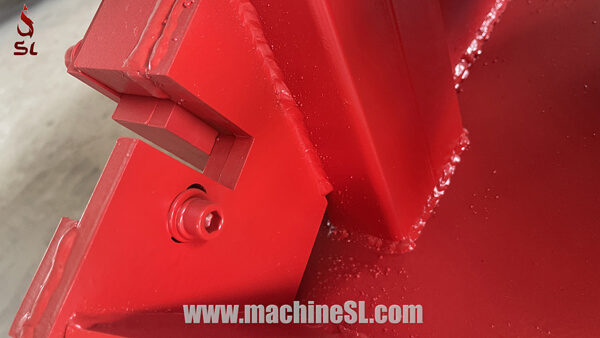

  • Cutter For Cruve Stub

cutter
  • If some bar stub is cruved and it’s hard to input into the hole, use this cutter cut the cruved stub off

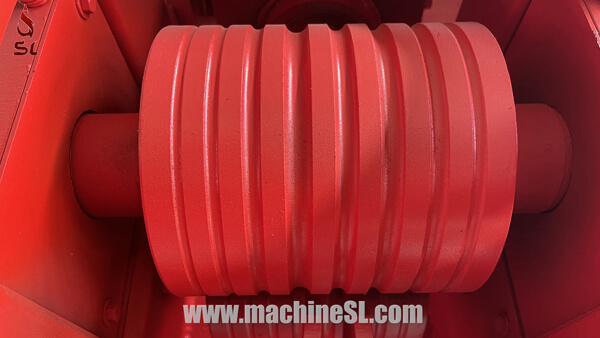

  • Rollers At Input Side

rollers at input side
  • Strong rollers at input side, traction the steel bar in, with different channels for different sizes rebar

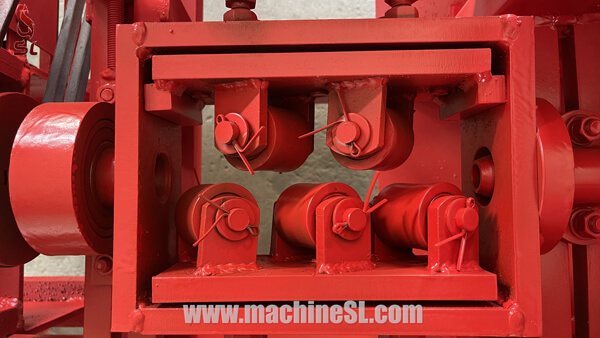

  • Straightening Die

straightening die
  • High speed rotate rollers with the frame, which can straight the steel bar in high straightness

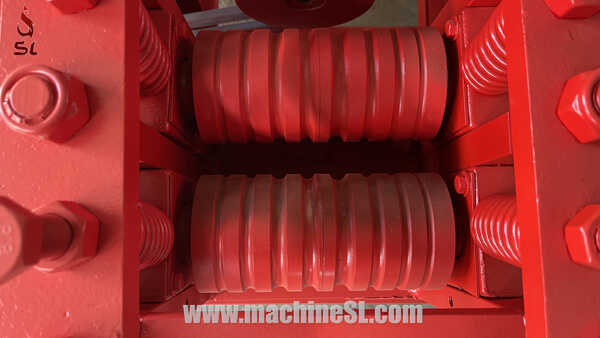

  • Rollers At Output Side

rollers at output side
  • Rollers at output side, traction the rebar out

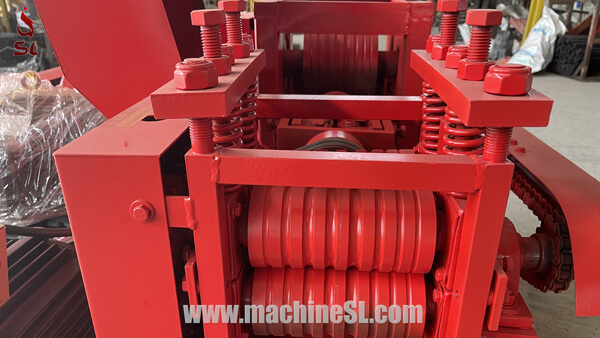

  • Bolts At Output Side

output side
  • Bolts used for press the rollers, adjust it to a better performance as you need

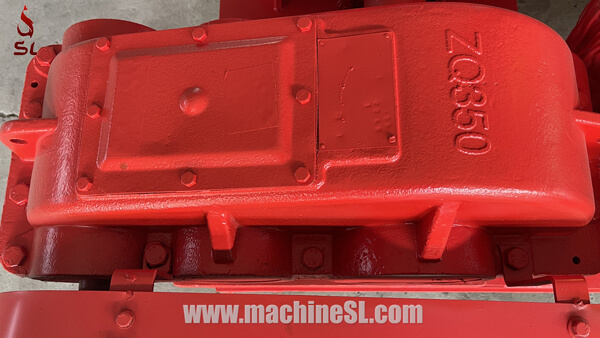

  • Reduction Gears

reduction gears
  • Powerful reduction gears supply powerful traction force

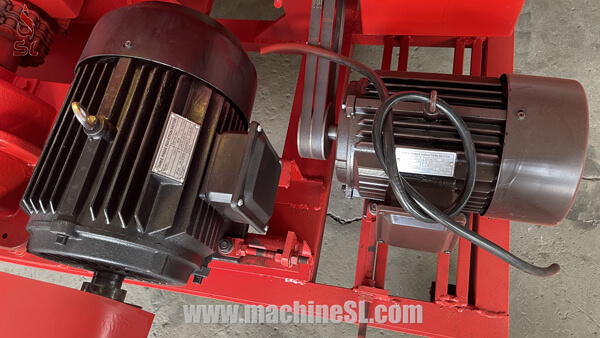

  • Motors

motors
  • 5.5Kw and 4Kw motor, one used for straightening, the other one used for traction

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
